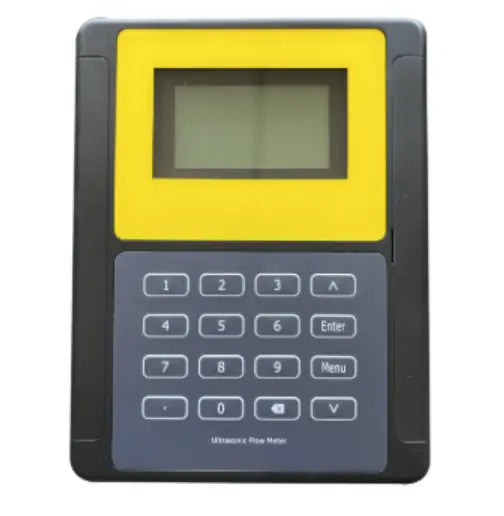

Clamp On Ultrasonic Flow Meter <br>for Liquid Flow <br>0.6" to 228" <br>+/- 0.5%

Clamp On Ultrasonic Flow Meter
for Liquid Flow
0.6" to 228"
+/- 0.5%

$2,200.00 Sale


Ultrasonic flowmeters use sound waves to determine the velocity of a fluid flowing in a pipe. At no flow conditions, the frequencies of an ultrasonic wave transmitted into a pipe & its reflections from the fluid are the same. The Ultrasonic Heat Meter allows for collection of BTU measurements for sub metering and billing.

Ultrasonic flowmeters for liquids, slurries ship from stock & configured for you OEM OK

EASY to use Clamp on Ultrasonic Meters. Check our stock & prices that beats our competition.

Features LARGE LCD display, shows the Instantaneous Flow Rate, Total Flow, in user-selectable units. One of the first Ultrasonic flow meters with a data logger. Both 24 VDC and universal AC power capability in an Ultrasonic Heat Meter and Ultrasonic Flow Meter.

Specifications

Clamp On Ultrasonic Flow Meter Specifications

  • Transducer material: Aluminum and 304 SS
  • Medium: Any acoustically conductive liquid with less than 5% air bubbles or solids
  • Flow Range: Supports velocities up to  40 f/s or 12 m/s
  • Accuracy: ±0.5%  from 0.15 to 40 f/s (0.05 to 12 m/s)
  • Resolution: 0.01 ft/s (0.00025 m/s)
  • Response time: 150 ms measuring cycle typical
  • Pipe Size:
    • 0.6” to 228”
    • Smallest pipe/tube:(1.125 OD with .05 wall with N or W Mounting)
  • Temperature: - 20 - 110 ℃
  • Cable length: 15’
  • Transducer Frequency: 1 MHz
  • Clamp-on transducers: encapsulated design IP68
    • Std Temp Spec for Blue Transmitters 194 F (90 C)
    • Std Temp Spec for Black Transmitters 320 F (160 C)
  • Enclosure Grade: IP65
  • Display LCD Screen
  • Power Supply: Set up to use either 24VDC or a 86-240 VAC Universal Power Supply. Only one at a time. Consumes 500 mA max
  • Output: 4-20mA + 0-10K Hz + Standard ModBus RTU Communication protocol
  • Note: For 1 to 5 VDC output, add 250 Ohm resistor to 4 to 20 mA loop
