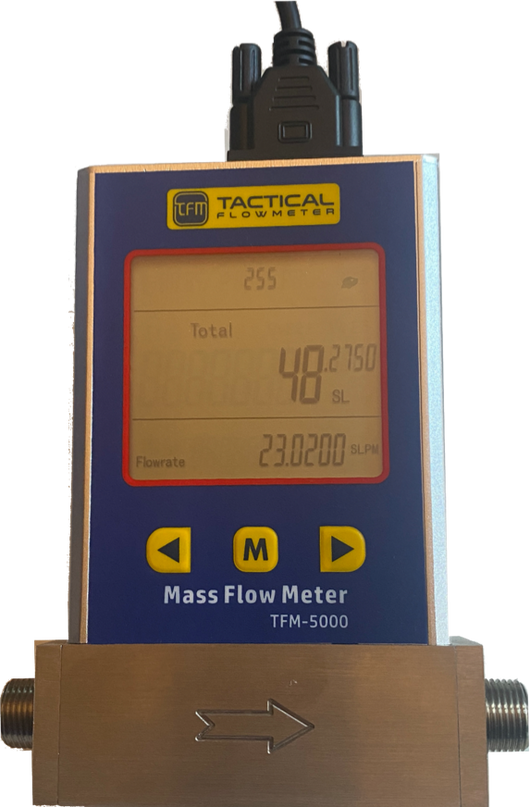

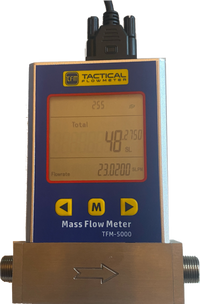

100 SLPM Low Flow Tactical Flow Meter WIth Display

100 SLPM Low Flow Tactical Flow Meter WIth Display

Regular price $1,250.00 Sale

MASS FLOW METER 0- 100 SLPM SIZE FLOW METER

Specifications

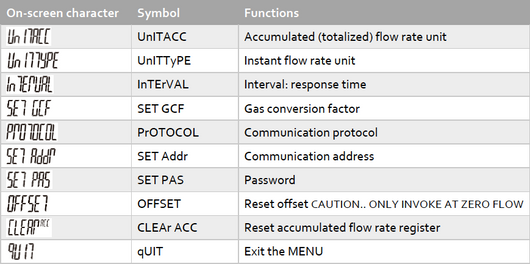

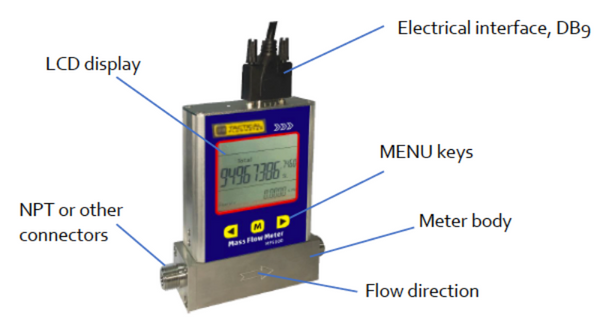

Features LARGE LCD display, shows the Flow Rate, Total Flow, Temperature, Flow Units, Total Units, Temperature Units,.

Analog output and ModBus RTU then a power supply of 12-24 VDC with a capability of 50 mA must be used to power the meter.

  • Flow Body Material 316 SS
  • 100 SLPM relative to Nitrogen Other ranges available on special order.
  • Accuracy: +/- 1.5% of reading + 0.5% FS
  • Repeatability of +/- 0.5% of reading

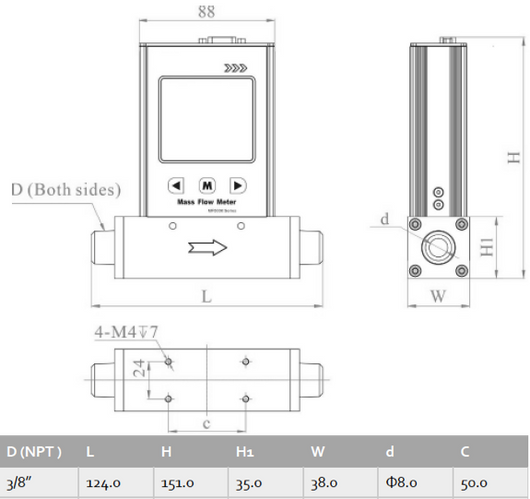

  • 3/8" Male NPT
  • LCD Display
  • Measures any inert gas and any non-condensing clean gas.
  • Flammable gases: methane, propane, digester gas, natural gas
  • 100:1 turndown
  • Temperature:
    • Gas: 14°F (-10°C) to 131°F (55°C)
    • Ambient: 14°F (-10°C) to 149°F (65°C)
  • SUPER FAST Response time 250 milliseconds.
  • Power Requirement: 12 to 24 VDC (regulated), 50 mA maximum;
  • Wetted Materials may include: 316 stainless-steel, Silicon Nitride, Pyrex Glass, Alumina ceramics, gold, aluminum, nickel, FR-4 and Pb-free solder may come in contact with gas.
  • Output signals: Modbus RTU, 4–20 mA , 0–5 VDC, and User definable pulse  output (3VDC) for flow rate indication. Totalizer is non-resettable suitable for billing applications.
  • Digital communications: Modbus RTU
  • Proof Pressure 1.2 MPa, 175 PSIG.
  • NEMA 1 Enclosure for Lab and indoor use.

Brochure and Quick Manual (QR Code for Smart Phone Uaers)

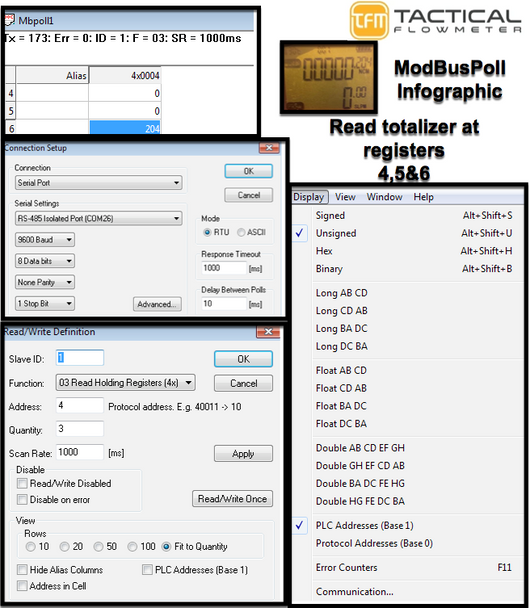

ModBus Poll example register use.

Low FLow Meter ModBusPoll Infographic



Gas K-Factors for GCF Term:

Air (calibrated gas, GCF = 1000), N2 (no change, GCF = 1000), O2 (no change, GCF = 1000); Argon (GCF=1150); and CO2 (GCF=740).
