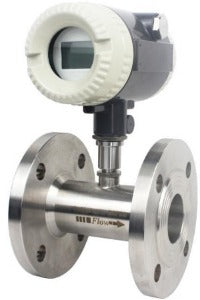

Turbine Liquid Flow Meter

Turbine Flow Meter

Regular price $1,220.00 Sale

A turbine flow meter is used for volumetric total flow &/or flow rate measurement & has a relatively simple working principle. As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing. The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine. The resulting output is taken by an electrical pickoff(s) mounted on the flow meter body.

A turbine flow meter for liquids diesel, & oil ship from stock & configured for you OEM OK

EASY to use Turbine Flow Meters. Check our stock and prices that beats our competition.

Display

Turbine Flow Meter Digital Display

Turbine flow meter display, tactical Flow Meter

Best price on high-end liquid Turbine Flow Meters and Sanitary fitting Turbine flow meters with ModBus RTU, 4-20 mA out, and frequency output.

Features LARGE LCD display shows the Flow Rate and Total Flow in user selectable units.

Specifications

Turbine Flow Meter Specifications

  • Wetted Materials all 304 SS
  • Velocity Range: See detail below.
  • Velocity Accuracy: +/- 0.5% of reading
  • Repeatability of +/- 0.05% of reading
  • 1/2" to 8" 150# ANSI Flange Connections, up to 12" available custom.
  • LCD Display
  • Temperature Accuracy +/- 1 Deg C
  • Temperature:
    • Liquid Only: -40°F (-40°C) to 482°F (250°C)
    • Ambient: -40°F (-40°C) to 131°F (55°C)
  • Power Requirement: 24 VDC, 15 Watts maximum;
  • 3.6 VDC Lithium C or D Size battery. Has LCD Display but no outputs for 4-20, pulse, or ModBus to allow long run time
  • Output signals: Modbus RTU, 4–20 mA, and 0-1.0 KHz for flow rate indication
  • Digital communications: Modbus RTU
  • Max Pressure 1.6 MPa, 230 PSIG. (Custom up to 4.0 MPa 580 PSIG)
  • Display: Flow rate and Total flow
  • Wiring connection to enclosure size: M20 x 1.5
  • Factory Final QC Test Certificate
  • Integral Electronics
  • Electronics Enclosure NEMA 4X / IP67

Turbine Flow Meter Ranges:

The turbine meter has different minimum and maximum flow rated it can measure based on the meter size. Please note the values below for proper sizing of your meter. These flows are relative to water.

Liquids:
Liquid Turbine Flow Meter Flow Rates
Dimensions

Turbine Flange Meter Dimensions with 150# ANSI B 16.5 Flanges

Turbine Flow Meter Dimensions

Download Brochure , Specifications, and Dimensions:

Turbine Flow ModBus Register List

How to use the 2 button interface video: To get the most out of the video open the link below and print out the document or open it in another window. Note the calibration coefficient Q Factor, K [P/m3] will show up on the meter as 218364 for a calibration coefficient of 218.364 on the calibration certificate.

User Manual

Turbine Flow Meter Manual

Where to get Power Supplies, Gaskets, Nuts, and Bolts Link

Videos

How to configure the Turbine Flow Meter.
