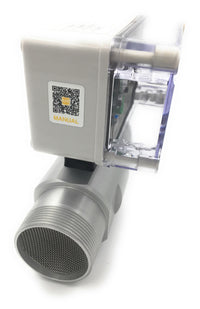

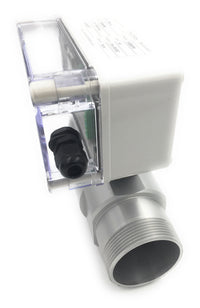

2" Tactical Thermal Mass Flow Meter

Regular price $3,300.00 Sale

A thermal mass flow meter is a precision instrument that measures gas mass flow. The device is used in a wide range of applications in many industries.

A thermal mass flow meter is a precision instrument that measures gas mass flow. The device is used in a wide range of applications in many industries.

EASY to use Low Flow Mass Flow Meters. Check our stock & prices that beats our competition.

2" NPT 0-80 SCFM (136 SM3/Hr) and Temperature

  • Choose Material 316 SS, 6061 T6 Aluminum or Nylon 6/6
  • Choose Air Flow range to 0-40, 50, 60, 70, and 80 SCFM
  • Accuracy: +/- 1% of reading plus +/-0.5% of full scale
  • Repeatability of +/- 0.2% of full scale
  • 2” MNPT Pipe size
  • OLED Display
  • Measures any inert gas and any non-condensing clean gas
  • Flammable gases: methane, propane, digester gas, natural gas
  • 100:1 turndown
  • Temperature:
    • Gas: -40°F (-40°C) to 350°F (200°C)
    • Ambient: -40° F to 120° F (-40° C to 50° C)
  • Adjustable Response time from .1 to 6 seconds to achieve 63% of final value
  • Power Requirement 18 to 30 VDC (regulated), 125 mA maximum;
  • Wetted Materials: Nylon 6/6, 6061T6 Aluminum, & 316 stainless-steel
  • Output signals: Modbus RTU, USB-RS-232, 4–20 mA , 0–5 VDC, and Pulse User definable pulse or frequency for totalized or flow rate indication.
  • Digital communications solutions include: Modbus RTU, USB, Bluetooth
  • IP66 Enclosure

The video below shows how the Tactical Flow Meter works and what advantages it has over conventional Thermal Mass Flow meters, such as the Sierra Instruments Model 840 or Sierra Instruments Model 830 series Thermal Mass Flow Meters.

Mass Flow Meters and Controllers Re-imagined

CONGRATULATIONS! You just got your meter and you want to hook it up! We have installed TWO wires, a RED wire that hooks up to the + side of 24 VDC and the WHITE wire that hooks up to the GROUND side of your 24 VDC power supply with at least 200 mA capability.
Please connect it to your power supply and see how the meter works and download the Configuration Software and follow the instructions to connect to your meter with either the USB, BlueTooth, or ModBus RTU.
When done remove those two short wires and keep handy for other quick tests.
Most folks want to get moving quickly so they opt to use the BlueTooth because no wiring is required. Remember, as shown below, that you FIRST tell your PC that you have a BlueTooth located nearby and PAIR it with the Pairing Code of 1234. Windows may enumerate TWO COM ports, it is normally the FIRST one it chooses.
Get your two page Wiring Diagram below, download here
The links and videos below are available from the user program and they automatically serve the content that is related to the function that is being used on the screen the user is using. There is no need to review these videos unless you have a desire to see how the meter works without actually having to use one. Consider these videos as a video guided tour of the Thermal Mass Flow Meter. These videos are fully responsive so you may view them on a Smart Phone.

Main User Program Index

Click here to view the Complete User Instructions.
Click here to view how to connect to Bluetooth.
Click here to view for MORE Bluetooth tips.
Click here to view how to Validate Your Flow Meter.
Click here to view how to use the Datalog.
Click here to learn how to read the OLED Local Display.
Click here to show QR Code so you can view this site on your SmartPhone.
Click here to view How to use the 0-5VDC and 4-20mA Outputs, basic overview.
Click here to view Details on adjusting 0-5VDC and 4-20mA Outputs.
For Wiring Diagrams and connections Click here
Click here to use the Terminal and ModBus and RealTime graph.
Click here for detailed ModBus instructions
Click here to work with the Totalizer and Pulse Counter, basic overview.
Click here to Set Up your Totalizer and Pulse Counter with some examples.
Click here to view how to use Setup tab for enabling writing.
Click here to use the Configuration tab to view the meter variables.
Click here to work with the Totalizer and configure the pulse counter.
Click here to work with the Calibration Screen for editing the calibration variables.

The table below shows the Register addresses that are in place to support the use the same register scheme used in any Sage Metering ModBus equipped Thermal Mass Flow Meter. The Sage Metering product indicates the raw flow reading in mW, typically in the range of 40 mW to 900 mW. As such, we scale the output of the Tactical Flow meter's 0-32767 Raw Ticks output to the range of 40 to 900 mW when using the ModBus command 582. This provides for easy comparison of the raw values.

Sage Metering ModBus Emulation Registers

OLED Screen Instructions

Click here to go back to the Index.

Refer to the screen samples below to understand what each of the screens means and indicates to the user.

QR Code for this page:

Click here to go back to the Index.

The QR Code is VERY HANDY to read with your Smart Phone so you can have these instructions on your portable device when you go to the flow meter in the field. These videos render very fast on all Smart Phones.

Manual



Main User Instructions

Click here to go back to the Index.

We demonstrate the operation of the User Program with a Windows Machine to allow you to understand the basic principles of the mass flow meter/controller. We demonstrate the operation of the User Program with a Windows Machine to allow you to understand the basic principles of the mass flow meter/controller. This video show all aspects of the program and is available in each category from the index values shown above.

Bluetooth Instructions

Click here to go back to the Index.

We demonstrate the method of setting up the mass flow meter/controller with a Windows Machine with Bluetooth using the User Program.
The Pairing Code is 1234 on all the flow meters.

MORE Bluetooth Instructions

Click here to go back to the Index.

We demonstrate more methods for using the PC and Bluetooth and how to discover which Bluetooth device is connected to your Flow Meter.

Flowmeter Validation Instructions

Click here to go back to the Index.

We demonstrate the method of validating the calibration of the mass flow meter/controller with a Windows Machine with the User Program.

Datalog Instructions

Click here to go back to the Index.

We demonstrate the method of downloading/viewing and plotting the datalog data from the mass flow meter/controller with a Windows Machine with the User Program.

Voltage Output Instructions

Click here to go back to the Index.

This video shows how the 4-20 and 0-5 VDC Outputs can be validated manually.

Examples of adjusting the 0-5 and 4-20 outputs

Click here to go back to the Index.

This video shows examples of adjusting the 4-20 and 0-5 VDC outputs to correlate with the attached data acquisition system.

Bluetooth Instructions

Click here to go back to the Index.

We demonstrate the method of setting up the mass flow meter/controller with a Windows Machine with Bluetooth using the User Program.

Flowmeter Validation Instructions

Click here to go back to the Index.

We demonstrate the method of validating the calibration of the mass flow meter/controller on a Windows Machine with the User Program.

Datalog Instructions

Click here to go back to the Index.

We demonstrate the method of downloading/viewing and plotting the datalog data from the mass flow meter/controller with a Windows Machine with the User Program.

Voltage and Current Output Instructions

Click here to go back to the Index.

We demonstrate the method of validating the calibration of the mass flow meter/controller with a Windows Machine with the User Program.

Terminal and ModBus Instructions

Click here to go back to the Index.

We demonstrate the method of using the Terminal and the ModBus functions for the mass flow meter/controller with a Windows Machine with the User Program.

Totalizer and Pulse Counter Instructions

Click here to go back to the Index.

We demonstrate the method of accessing the totalizer and pulse output of the mass flow meter/controller for a Windows Machine with the User Program.

Totalizer and Pulse Counter Configuration Instructions

Click here to go back to the Index.

We demonstrate the method of setting up your Pulse Counter to count at the rate that is supported by your connected pulse counter. We show the part that accomplishes the pulse counting as well as the specification sheet for an Omron H7EC as an example.

Setup Instructions

Click here to go back to the Index.

We demonstrate the setup screen of the mass flow meter/controller for a Windows Machine with the User Program.

Configuration Instructions

Click here to go back to the Index.

We demonstrate the method of accessing the configuration of the mass flow meter/controller for a Windows Machine with the User Program.

Calibration Instructions

Click here to go back to the Index.

We demonstrate the method of accessing the calibration features of the mass flow meter/controller for a Windows Machine with the User Program.
