1" NPT 0-25 SCFM (43SM3/Hr) and Temperature

Specifications

• Accuracy: +/- 1% of reading plus +/-0.5% of full scale

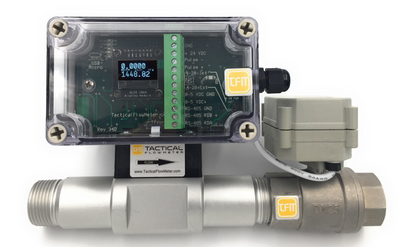

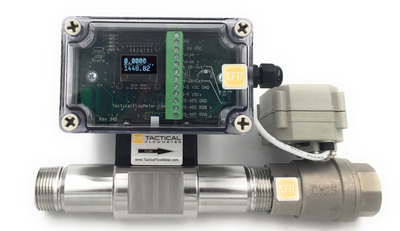

• Flow Control adjustable via digital communications, on board encoder, or SmartPhone.
• Repeatability of +/- 0.2% of full scale

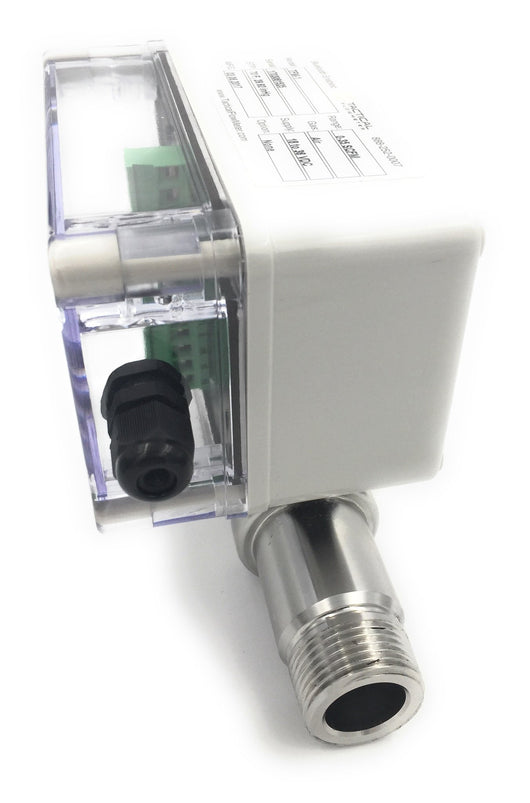

• 1” MNPT Pipe size Inlet/ 1" FNPT pipe size outlet

• Flow control range to 0-25 SCFM

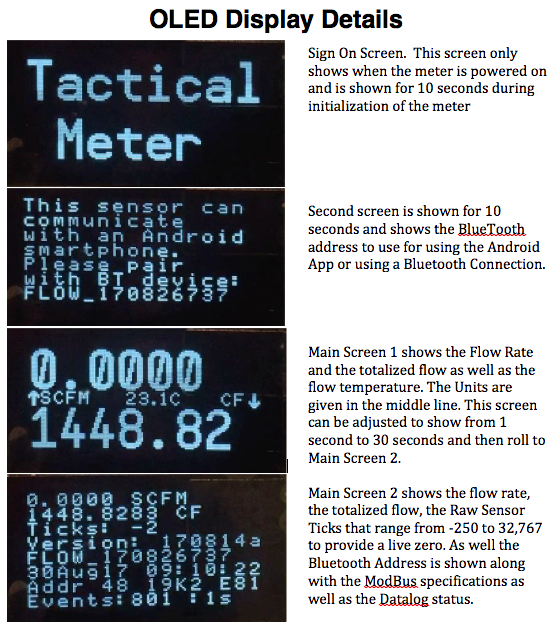

• OLED Display
• Measures any inert gas and any non-condensing clean gas
• Flammable gases: methane, propane, digester gas, natural gas
• 100:1 turndown
• Temperature:
• Gas: -40°F (-40°C) to 350°F (200°C)
• Ambient: -40° F to 120° F (-40° C to 50° C)
• Adjustable Response time from .1 to 6 seconds to achieve 63% of final value
• Power Requirement 18 to 30 VDC (regulated), 125 mA maximum;

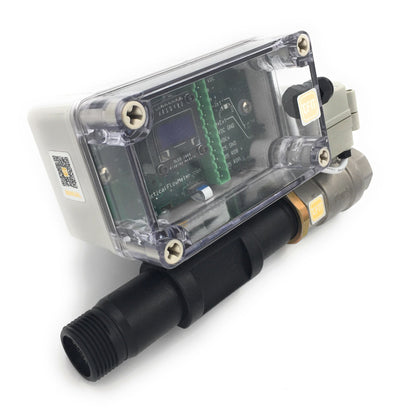

• Nylon 6/6, 6061T6 Aluminum or 316 stainless-steel construction
• Output signals: Modbus RTU, USB-RS-232, 4–20 mA , 0–5 VDC, and Pulse User definable pulse or frequency for totalized or flow rate indication

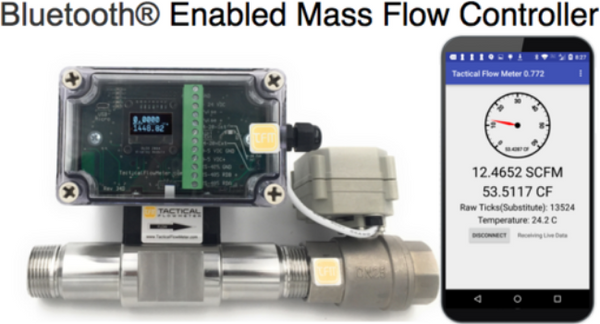

• Digital communications solutions include: Modbus RTU, USB, Bluetooth
• IP66 Enclosure
