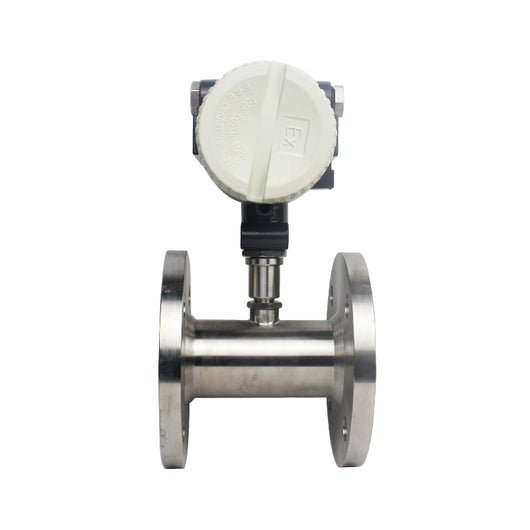

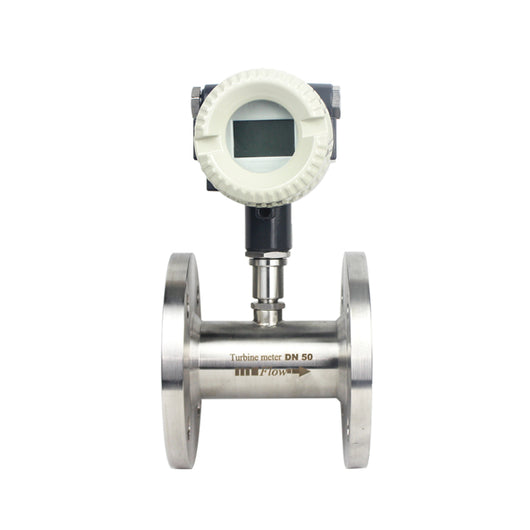

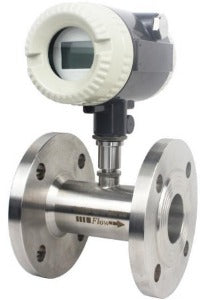

Turbine Liquid Flow Meter

Turbine Flow Meter

Regular price $1,230.00 Sale

Turbine Liquid Flow Meter

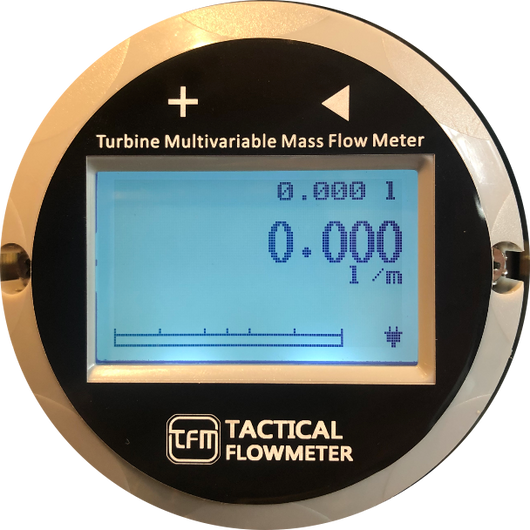

Turbine Flow Meter Digital Display

Turbine flow meter display, tactical Flow Meter

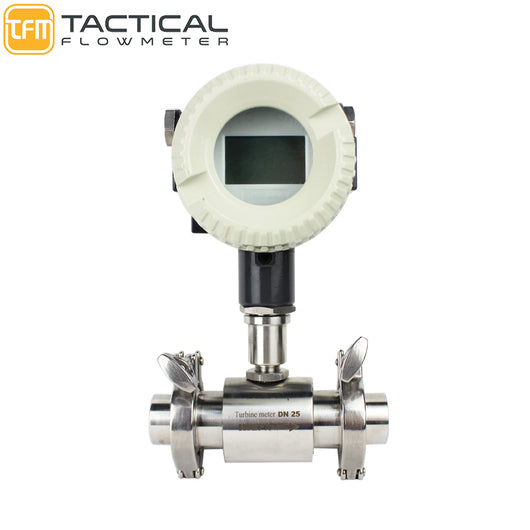

Best price on high-end liquid Turbine Flow Meters and Sanitary fitting Turbine flow meters with ModBus RTU, 4-20 mA out, and frequency output.

Features LARGE LCD display shows the Flow Rate and Total Flow in user selectable units.

 Turbine Flow Meter Specifications.

  • Wetted Materials all 304 SS
  • Velocity Range: See detail below.
  • Velocity Accuracy: +/- 0.5% of reading
  • Repeatability of +/- 0.05% of reading
  • 1/2" to 8" 150# ANSI Flange Connections, up to 12" available custom.
  • LCD Display
  • Temperature Accuracy +/- 1 Deg C
  • Temperature:
    • Liquid Only: -40°F (-40°C) to 482°F (250°C)
    • Ambient: -40°F (-40°C) to 131°F (55°C)
  • Power Requirement: 24 VDC, 15 Watts maximum;
  • 3.6 VDC Lithium C or D Size battery. Has LCD Display but no outputs for 4-20, pulse, or ModBus to allow long run time
  • Output signals: Modbus RTU, 4–20 mA, and 0-1.0 KHz for flow rate indication
  • Digital communications: Modbus RTU
  • Max Pressure 1.6 MPa, 230 PSIG. (Custom up to 4.0 MPa 580 PSIG)
  • Display: Flow rate and Total flow
  • Wiring connection to enclosure size: M20 x 1.5
  • Factory Final QC Test Certificate
  • Integral Electronics
  • Electronics Enclosure NEMA 4X / IP67

Turbine Flow Meter Ranges:

The turbine meter has different minimum and maximum flow rated it can measure based on the meter size. Please note the values below for proper sizing of your meter. These flows are relative to water.

  • Liquids:
    Liquid Turbine Flow Meter Flow Rates


Turbine Flange Meter Dimensions with 150# ANSI B 16.5 Flanges

Turbine Flow Meter Dimensions

Download Brochure , Specifications, and Dimensions:

Turbine Flow ModBus Register List

How to use the 2 button interface video: To get the most out of the video open the link below and print out the document or open it in another window. Note the calibration coefficient Q Factor, K [P/m3] will show up on the meter as 218364 for a calibration coefficient of 218.364 on the calibration certificate.

How to configure the Turbine Flow Meter.


Turbine Flow Meter Manual


Q Unit >> l/m
Q Mode >> Qvw actual (We are measuring volume flow....)
Q Factor >> 2121.47  Do Not Change (This is stamped on the side of the meter)
Density >> 875 kg/m3 (Water is 1000)
Q20mA >> 250 (FULL SCALE... If your meter is 250 l/m)
Q Cut-Zero % >> 5
Q Up Al >> 250 to turn the alarm on at 100%
Q Dn Al >> 25 to turn the alarm at 10% flow
Damp S >> 6
Comm Address >> 0
Clear Q >> Clears Totalizer, Password = 70

Language >> English
Pulse Type >> F_adj
Pulse Factor >> 0.01
Comm Param >> 9600, No
Comm Switch >> ON
P_display >> MEASURE
Set Pc >> 0
P0-Ref >> 101.3KPa
T_display >> MEASURE
Set Tc >> 20 Deg C
T-TYPE >> Pt=100
Tn >> 20 Deg C
Environ-T >> -20 Deg C (-10 C is fine if you do not get them cold.)
Q-adj >> DO NOT change this setting

Signal-TYPE >> LF: DN40-500 Lqd
Gain >> G=9
VPP limit >> 100mV
Fre-Range >> 11=34-850Hz
Work Type >> Digital
an-noise TYPE >> ANS
Signal-Adj-Set >> FIlter 10 or OFF
50Hz Cut >> ON
K-LINE ADJ >> DO NOT change this setting
